1-piece 1-piece

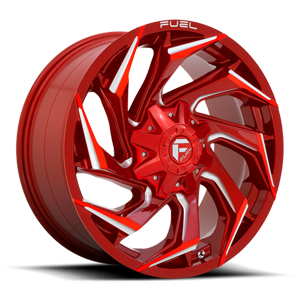

Reaction
Model D754
- Candy Red & Milled
- 15x8 / 17x9 / 18x9 / 20x9 / 20x10 / 22x10 / 22x12 / 24x12
- 5 / 6 / 8Lug
Product image shown not representative of all configurations. Vehicle specific fitment will change offset, dish and center profile. Please consult your salesperson for application-specific details.
Patent # D935975
| Size | BP | BP 2 | Part Number | Finish | Bore | Offset | bsm (in) | Cap num | rating (lb) | Weight (lb) | lug type | lipsize (in) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15x8 | 5x114.3 | 5x120.65 | D75415800437 | CANDY RED MILLED | 72.7 | -18 | 3.79 | 1002-50GQC | 1800 | 24 | CONICAL | 0 | ||
| 15x8 | 6x139.7 | D75415808337 | CANDY RED MILLED | 108 | -18 | 3.79 | 1002-50GQC | 1800 | 24 | CONICAL | 0 | |||
| 15x8 | 5x139.7 | D75415808537 | CANDY RED MILLED | 108 | -18 | 3.79 | 1002-50GQC | 1800 | 24 | CONICAL | 0 | |||
| 15x8 | 5x139.7 | D75415808540 | CANDY RED MILLED | 108 | -12 | 0 | 1800 | 27 |
| Size | BP | BP 2 | Part Number | Finish | Bore | Offset | bsm (in) | Cap num | rating (lb) | Weight (lb) | lug type | lipsize (in) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17x9 | 5X114.3 | 5x127 | D75417902645 | CANDY RED MILLED | 78 | -12 | 5.47 | 1001-63GQC | 2500 | 39 | CONICAL | 0 | ||
| 17x9 | 5X114.3 | 5x127 | D75417902650 | CANDY RED MILLED | 78 | 1 | 5.04 | 1001-63GQC | 2500 | 39 | CONICAL | 0 | ||
| 17x9 | 6X135 | 6x139.7 | D75417909845 | CANDY RED MILLED | 106.1 | -12 | 5.47 | 1001-63GQC | 2500 | 39 | CONICAL | 0 | ||
| 17x9 | 6X135 | 6x139.7 | D75417909850 | CANDY RED MILLED | 106.1 | 1 | 5.04 | 1001-63GQC | 2500 | 39 | CONICAL | 0 |
| Size | BP | BP 2 | Part Number | Finish | Bore | Offset | bsm (in) | Cap num | rating (lb) | Weight (lb) | lug type | lipsize (in) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18x9 | 8X170 | D75418901745 | CANDY RED MILLED | 125.1 | -12 | 5.47 | 1001-63GQCKIT5 | 3700 | 41 | CONICAL | 0 | |||
| 18x9 | 8X180 | D75418901850 | CANDY RED MILLED | 124.3 | 1 | 5.04 | 1002#53GQC | 3700 | 41 | CONICAL | 0 | |||
| 18x9 | 5X114.3 | 5x127 | D75418902645 | CANDY RED MILLED | 78 | -12 | 5.47 | 1001-63GQC | 2500 | 41 | CONICAL | 0 | ||
| 18x9 | 5X114.3 | 5x127 | D75418902650 | CANDY RED MILLED | 78 | 1 | 5.04 | 1001-63GQC | 2500 | 41 | CONICAL | 0 | ||
| 18x9 | 8X165.1 | D75418908245 | CANDY RED MILLED | 125.2 | -12 | 5.47 | 1002#53GQC | 3700 | 41 | CONICAL | 0 | |||
| 18x9 | 8X165.1 | D75418908250 | CANDY RED MILLED | 125.2 | 1 | 5.04 | 1002#53GQC | 3700 | 41 | CONICAL | 0 | |||
| 18x9 | 6X135 | 6x139.7 | D75418909845 | CANDY RED MILLED | 106.1 | -12 | 5.47 | 1001-63GQC | 2500 | 41 | CONICAL | 0 | ||
| 18x9 | 6X135 | 6x139.7 | D75418909850 | CANDY RED MILLED | 106.1 | 1 | 5.04 | 1001-63GQC | 2500 | 41 | CONICAL | 0 |
| Size | BP | BP 2 | Part Number | Finish | Bore | Offset | bsm (in) | Cap num | rating (lb) | Weight (lb) | lug type | lipsize (in) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20x9 | 8X170 | D75420901750 | CANDY RED MILLED | 125.1 | 1 | 5.04 | 1001-63GQC | 3700 | 44 | CONICAL | 0 | |||
| 20x9 | 8X170 | D75420901757 | CANDY RED MILLED | 125.1 | 20 | 5.79 | 1001-63GQCKIT5 | 3700 | 44 | CONICAL | 0 | |||
| 20x9 | 8X180 | D75420901850 | CANDY RED MILLED | 124.3 | 1 | 5.04 | 1002#53GQC | 3700 | 44 | CONICAL | 0 | |||
| 20x9 | 8X180 | D75420901857 | CANDY RED MILLED | 124.3 | 20 | 5.79 | 1002#53GQC | 3700 | 44 | CONICAL | 0 | |||
| 20x9 | 5X114.3 | 5x127 | D75420902650 | CANDY RED MILLED | 78 | 1 | 5.04 | 1001-63GQC | 2500 | 44 | CONICAL | 0 | ||
| 20x9 | 5X114.3 | 5x127 | D75420902657 | CANDY RED MILLED | 78 | 20 | 5.79 | 1001-63GQC | 2500 | 45 | CONICAL | 0 | ||
| 20x9 | 5X139.7 | 5x150 | D75420907050 | CANDY RED MILLED | 110.2 | 1 | 5.04 | 1001-63GQC | 2500 | 44 | CONICAL | 0 | ||
| 20x9 | 5X139.7 | 5x150 | D75420907057 | CANDY RED MILLED | 110.2 | 20 | 5.79 | 1001-63GQC | 2500 | 45 | CONICAL | 0 | ||
| 20x9 | 8X165.1 | D75420908250 | CANDY RED MILLED | 125.2 | 1 | 5.04 | 1002#53GQC | 3700 | 44 | CONICAL | 0 | |||
| 20x9 | 8X165.1 | D75420908257 | CANDY RED MILLED | 125.2 | 20 | 5.79 | 1002#53GQC | 3700 | 44 | CONICAL | 0 | |||
| 20x9 | 6X135 | 6x139.7 | D75420909850 | CANDY RED MILLED | 106.1 | 1 | 5.04 | 1001-63GQC | 2500 | 44 | CONICAL | 0 | ||
| 20x9 | 6X135 | 6x139.7 | D75420909857 | CANDY RED MILLED | 106.1 | 20 | 5.79 | 1001-63GQC | 2500 | 45 | CONICAL | 0 | ||
| 20x10 | 8x170 | D75420001747 | CANDY RED MILLED | 125.1 | -18 | 4.79 | 1001-63GQC | 3700 | 47 | CONICAL | 0 | |||
| 20x10 | 8x180 | D75420001847 | CANDY RED MILLED | 124.3 | -18 | 4.79 | 1002#53GQC | 3700 | 47 | CONICAL | 0 | |||
| 20x10 | 5x114.3 | 5x127 | D75420002647 | CANDY RED MILLED | 78 | -18 | 4.79 | 1001-63GQC | 2500 | 46 | CONICAL | 0 | ||
| 20x10 | 5x139.7 | 5x150 | D75420007047 | CANDY RED MILLED | 110.2 | -18 | 4.79 | 1001-63GQC | 2500 | 46 | CONICAL | 0 | ||
| 20x10 | 8x165.1 | D75420008247 | CANDY RED MILLED | 125.2 | -18 | 4.79 | 1002#53GQC | 3700 | 47 | CONICAL | 0 | |||
| 20x10 | 6x135 | 6x139.7 | D75420009847 | CANDY RED MILLED | 106.1 | -18 | 4.79 | 1001-63GQC | 2500 | 46 | CONICAL | 0 |
| Size | BP | BP 2 | Part Number | Finish | Bore | Offset | bsm (in) | Cap num | rating (lb) | Weight (lb) | lug type | lipsize (in) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22x10 | 8x170 | D75422001747 | CANDY RED MILLED | 125.1 | -18 | 4.79 | 1001-63GQC | 3700 | 51 | CONICAL | 0 | |||
| 22x10 | 8x180 | D75422001847 | CANDY RED MILLED | 124.3 | -18 | 4.79 | 1002#53GQC | 3700 | 51 | CONICAL | 0 | |||
| 22x10 | 5x127 | 5x139.7 | D75422005747 | CANDY RED MILLED | 87.1 | -18 | 4.79 | 1001-63GQC | 2500 | 50 | CONICAL | 0 | ||
| 22x10 | 8x165.1 | D75422008247 | CANDY RED MILLED | 125.2 | -18 | 4.79 | 1002#53GQC | 3700 | 51 | CONICAL | 0 | |||
| 22x10 | 6x135 | 6x139.7 | D75422009847 | CANDY RED MILLED | 106.1 | -18 | 4.79 | 1001-63GQC | 2500 | 50 | CONICAL | 0 | ||
| 22x12 | 8x170 | D75422201747 | CANDY RED MILLED | 125.1 | -44 | 4.77 | 1001-63GQC | 3700 | 59 | CONICAL | 0 | |||
| 22x12 | 8x180 | D75422201847 | CANDY RED MILLED | 124.3 | -44 | 4.77 | 1002#53GQC | 3700 | 59 | CONICAL | 0 | |||
| 22x12 | 5x127 | 5x139.7 | D75422205747 | CANDY RED MILLED | 87.1 | -44 | 4.77 | 1001-63GQC | 2500 | 57 | CONICAL | 0 | ||
| 22x12 | 8x165.1 | D75422208247 | CANDY RED MILLED | 125.2 | -44 | 4.77 | 1002#53GQC | 3700 | 59 | CONICAL | 0 | |||
| 22x12 | 6x135 | 6x139.7 | D75422209847 | CANDY RED MILLED | 106.1 | -44 | 4.77 | 1001-63GQC | 2500 | 57 | CONICAL | 0 |
| Size | BP | BP 2 | Part Number | Finish | Bore | Offset | bsm (in) | Cap num | rating (lb) | Weight (lb) | lug type | lipsize (in) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24x12 | 8x170 | D75424201747 | CANDY RED MILLED | 125.1 | -44 | 4.77 | 1001-63GQC | 3700 | 65 | CONICAL | 0 | |||
| 24x12 | 8x180 | D75424201847 | CANDY RED MILLED | 124.3 | -44 | 4.77 | 1002#53GQC | 3700 | 65 | CONICAL | 0 | |||
| 24x12 | 5x127 | 5x139.7 | D75424205747 | CANDY RED MILLED | 87.1 | -44 | 4.77 | 1001-63GQC | 2500 | 64 | CONICAL | 0 | ||
| 24x12 | 8x165.1 | D75424208247 | CANDY RED MILLED | 125.2 | -44 | 4.77 | 1002#53GQC | 3700 | 65 | CONICAL | 0 | |||
| 24x12 | 6x135 | 6x139.7 | D75424209847 | CANDY RED MILLED | 106.1 | -44 | 4.77 | 1001-63GQC | 2500 | 64 | CONICAL | 0 |
