1-piece 1-piece

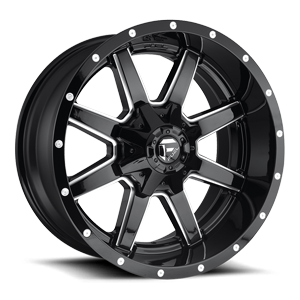

Maverick
Model D610
- Gloss Black
- 17x8.50 / 17x9 / 18x9 / 20x9 / 20x10 / 20x12 / 20x14 / 22x9.50 / 22x10 / 22x12
Product image shown not representative of all configurations. Vehicle specific fitment will change offset, dish and center profile. Please consult your salesperson for application-specific details.
| Size | BP | BP 2 | Part Number | Finish | Bore | Offset | bsm (in) | Cap num | rating (lb) | Weight (lb) | lug type | lipsize (in) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17x8.50 | 5x108 | 5x127 | D6101785G157 | GLOSS BLACK MILLED | 71.5 | 25 | 0 | 1900 | 29 | CONICAL | 1.85 | |||
| 17x9 | 5x114.3 | 5x127 | D61017902645 | GLOSS BLACK MILLED | 72.56 | -12 | 4.5 | 1001-63GBR | 2500 | 30 | CONICAL | 2.44 | ||
| 17x9 | 6x135 | 6x139.7 | D61017909845 | GLOSS BLACK MILLED | 106.1 | -12 | 4.5 | 1001-63GBR | 2500 | 30 | CONICAL | 2.44 | ||
| 17x9 | 6x135 | 6x139.7 | D61017909850 | GLOSS BLACK MILLED | 106.1 | 1 | 5 | 1001-63GBR | 2500 | 30 | CONICAL | 1.8 |
| Size | BP | BP 2 | Part Number | Finish | Bore | Offset | bsm (in) | Cap num | rating (lb) | Weight (lb) | lug type | lipsize (in) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18x9 | 8x170 | D61018901750 | GLOSS BLACK MILLED | 125.1 | 1 | 5 | 1002-53GBR | 3700 | 33 | CONICAL | 2.89 | |||
| 18x9 | 8x170 | D61018901757 | GLOSS BLACK MILLED | 125.1 | 20 | 0 | 3700 | 39 | 1.73 | |||||
| 18x9 | 8x180 | D61018901850 | GLOSS BLACK MILLED | 124.2 | 1 | 5 | 1002-53GBR | 3700 | 33 | CONICAL | 2.89 | |||
| 18x9 | 8X180 | D61018901857 | GLOSS BLACK MILLED | 124.2 | 20 | 0 | 3700 | 39 | CONICAL | 1.73 | ||||
| 18x9 | 5x114.3 | 5x127 | D61018902645 | GLOSS BLACK MILLED | 72.56 | -12 | 4.5 | 1001-63GBR | 2500 | 31 | CONICAL | 2.89 | ||
| 18x9 | 6x120 | 6x139.7 | D61018906957 | GLOSS BLACK MILLED | 78.1 | 20 | 5.75 | 1001-79GB HR67.0 | 2500 | 33 | CONICAL | 1.66 | ||
| 18x9 | 5x139.7 | 5x150 | D61018907057 | GLOSS BLACK MILLED | 110.1 | 20 | 5.75 | 1001-63GBR | 2500 | 31 | CONICAL | 1.73 | ||
| 18x9 | 8x165.1 | D61018908250 | GLOSS BLACK MILLED | 125.1 | 1 | 5 | 1002-53GBR | 3700 | 31 | CONICAL | 2.89 | |||
| 18x9 | 8x165.1 | D61018908257 | GLOSS BLACK MILLED | 125.1 | 20 | 5.75 | 1002-53GBR | 3700 | 33 | CONICAL | 1.73 | |||
| 18x9 | 6x135 | 6x139.7 | D61018909844 | GLOSS BLACK MILLED | 106.1 | -13 | 4.45 | 1001-79GB HR87.1/78.1 | 2500 | 33 | CONICAL | 2.54 | ||
| 18x9 | 6x135 | 6x139.7 | D61018909850 | GLOSS BLACK MILLED | 106.1 | 1 | 5 | 1001-63GBR | 2500 | 31 | CONICAL | 1.73 | ||
| 18x9 | 6x135 | 6x139.7 | D61018909854 | GLOSS BLACK MILLED | 106.1 | 13 | 5.45 | 1001-63B HR87.1/78.1 | 2500 | 31 | CONICAL | 1.73 | ||
| 18x9 | 6x135 | 6x139.7 | D61018909857 | GLOSS BLACK MILLED | 106.1 | 20 | 5.75 | 1001-63GBR | 2500 | 31 | CONICAL | 1.73 |
| Size | BP | BP 2 | Part Number | Finish | Bore | Offset | bsm (in) | Cap num | rating (lb) | Weight (lb) | lug type | lipsize (in) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20x9 | 8x170 | D61020901750 | GLOSS BLACK MILLED | 125.1 | 1 | 5 | 1002-53GBR | 3700 | 37 | CONICAL | 1.84 | |||
| 20x9 | 8x180 | D61020901850 | GLOSS BLACK MILLED | 125.1 | 1 | 5 | 1002-53GBR | 3700 | 37 | CONICAL | 1.84 | |||
| 20x9 | 8x180 | D61020901857 | GLOSS BLACK MILLED | 125.1 | 20 | 5.75 | 1002-53GBR | 3700 | 37 | CONICAL | 1.84 | |||
| 20x9 | 5x114.3 | 5x127 | D61020902650 | GLOSS BLACK MILLED | 78.1 | 1 | 5 | 1001-63GBR | 2500 | 37 | CONICAL | 1.84 | ||
| 20x9 | 6x120 | 6x139.7 | D61020906957 | GLOSS BLACK MILLED | 78.1 | 20 | 5.75 | 1001-79GB HR67.0 | 2500 | 38 | CONICAL | 1.55 | ||
| 20x9 | 5x139.7 | 5x150 | D61020907050 | GLOSS BLACK MILLED | 110.1 | 1 | 5 | 1001-63GBR | 2500 | 37 | CONICAL | 1.84 | ||
| 20x9 | 5x139.7 | 5x150 | D61020907057 | GLOSS BLACK MILLED | 110.1 | 20 | 5.75 | 1001-63GBR | 2500 | 37 | CONICAL | 1.84 | ||
| 20x9 | 8x165.1 | D61020908250 | GLOSS BLACK MILLED | 125.1 | 1 | 5 | 1002-53GBR | 3700 | 37 | CONICAL | 1.84 | |||
| 20x9 | 8x165.1 | D61020908257 | GLOSS BLACK MILLED | 125.1 | 20 | 5.75 | 1002-53GBR | 3700 | 37 | CONICAL | 1.84 | |||
| 20x9 | 6x135 | 6x139.7 | D61020909850 | GLOSS BLACK MILLED | 106.1 | 1 | 5 | 1001-63GBR | 2500 | 37 | CONICAL | 1.84 | ||
| 20x9 | 6x135 | 6x139.7 | D61020909857 | GLOSS BLACK MILLED | 106.1 | 20 | 5.75 | 1001-63GBR | 2500 | 37 | CONICAL | 1.84 | ||
| 20x9 | 5x108 | 5x127 | D6102090G162 | GLOSS BLACK MILLED | 71.5 | 30 | 0 | 1900 | 36 | CONICAL | 1.86 | |||
| 20x10 | 5x127 | 5x135 | D61020000547 | GLOSS BLACK MILLED | 87.1 | -18 | 4.75 | 1001-63GBR | 2500 | 41 | CONICAL | 3.43 | ||
| 20x10 | 8x170 | D61020001747 | GLOSS BLACK MILLED | 125.1 | -18 | 4.75 | 1002-53GBR | 3700 | 41 | CONICAL | 3.43 | |||
| 20x10 | 8x180 | D61020001847 | GLOSS BLACK MILLED | 125.1 | -18 | 4.75 | 1002-53GBR | 3700 | 41 | CONICAL | 3.43 | |||
| 20x10 | 5x114.3 | 5x127 | D61020002647 | GLOSS BLACK MILLED | 78.1 | -18 | 4.75 | 1001-63GBR | 2500 | 41 | CONICAL | 3.43 | ||
| 20x10 | 5x139.7 | 5x150 | D61020007047 | GLOSS BLACK MILLED | 110.1 | -18 | 4.75 | 1001-63GBR | 2500 | 41 | CONICAL | 3.43 | ||
| 20x10 | 8x165.1 | D61020008247 | GLOSS BLACK MILLED | 125.1 | -18 | 4.75 | 1002-53GBR | 3700 | 41 | CONICAL | 3.43 | |||
| 20x10 | 6x135 | 6x139.7 | D61020009845 | GLOSS BLACK MILLED | 106.1 | -24 | 4.5 | 1001-63GBR | 2500 | 41 | CONICAL | 3.43 | ||
| 20x10 | 6x135 | 6x139.7 | D61020009847 | GLOSS BLACK MILLED | 106.1 | -18 | 4.75 | 1001-63GBR | 2500 | 41 | CONICAL | 3.43 | ||
| 20x12 | 8x170 | D61020201747 | GLOSS BLACK MILLED | 125.1 | -44 | 4.75 | 1002-53GBR | 3700 | 44 | CONICAL | 5.1 | |||
| 20x12 | 5x114.3 | 5x127 | D61020202647 | GLOSS BLACK MILLED | 78.1 | -44 | 4.75 | 1001-63GBR | 2500 | 44 | CONICAL | 5.1 | ||
| 20x12 | 5x139.7 | 5x150 | D61020207047 | GLOSS BLACK MILLED | 110.1 | -44 | 4.75 | 1001-63GBR | 2500 | 44 | CONICAL | 5.1 | ||
| 20x12 | 8x165.1 | D61020208247 | GLOSS BLACK MILLED | 125.1 | -44 | 4.75 | 1002-53GBR | 3700 | 44 | CONICAL | 5.1 | |||
| 20x12 | 6x135 | 6x139.7 | D61020209847 | GLOSS BLACK MILLED | 106.1 | -44 | 4.75 | 1001-63GBR | 2500 | 44 | CONICAL | 5.1 | ||
| 20x14 | 6x135 | 6x139.7 | D61020409845 | GLOSS BLACK MILLED | 106.1 | -76 | 4.5 | 1001-63GBR | 2500 | 47 | CONICAL | 8.04 |
| Size | BP | BP 2 | Part Number | Finish | Bore | Offset | bsm (in) | Cap num | rating (lb) | Weight (lb) | lug type | lipsize (in) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22x9.50 | 6x135 | 6x139.7 | D61022959860 | GLOSS BLACK MILLED | 106.1 | 20 | 6 | 1001-63GBR HR87.1/78.1 | 2500 | 40 | CONICAL | 2.29 | ||
| 22x10 | 8x170 | D61022001745 | GLOSS BLACK MILLED | 125.1 | -24 | 4.5 | 1002-53GBR | 3700 | 53 | CONICAL | 4.05 | |||
| 22x10 | 8x170 | D61022001757 | GLOSS BLACK MILLED | 125.1 | 10 | 5.8 | 1002#53GB | 3700 | 45 | CONICAL | 3.47 | |||
| 22x10 | 8x180 | D61022001857 | GLOSS BLACK MILLED | 124.2 | 10 | 5.8 | 1002#53GB | 3700 | 45 | CONICAL | 3.47 | |||
| 22x10 | 5x139.7 | 5x150 | D61022007057 | GLOSS BLACK MILLED | 110.1 | 10 | 5.8 | 1001-79GB | 2500 | 45 | CONICAL | 3.47 | ||
| 22x10 | 8x165.1 | D61022008245 | GLOSS BLACK MILLED | 125.1 | -24 | 4.5 | 1002-53GBR | 3700 | 53 | CONICAL | 4.05 | |||
| 22x10 | 6x135 | 6x139.7 | D61022009844 | GLOSS BLACK MILLED | 106.1 | -24 | 4.5 | 1001-79GB HR87.1/78.1 | 2500 | 42 | CONICAL | 4.05 | ||
| 22x10 | 6x135 | 6x139.7 | D61022009856 | GLOSS BLACK MILLED | 106.1 | 10 | 5.9 | 1001-79GB | 2500 | 43 | CONICAL | 3.09 | ||
| 22x12 | 8x170 | D61022201747 | GLOSS BLACK MILLED | 125.1 | -44 | 4.75 | 1002#53GBR | 3700 | 49 | CONICAL | 5.59 | |||
| 22x12 | 8x180 | D61022201847 | GLOSS BLACK MILLED | 124.2 | -44 | 4.75 | 1002#53GBR | 3700 | 49 | CONICAL | 5.59 | |||
| 22x12 | 5x114.3 | 5x127 | D61022202647 | GLOSS BLACK MILLED | 78.1 | -44 | 4.75 | 1001-79GBR | 2500 | 49 | CONICAL | 5.59 | ||
| 22x12 | 5x139.7 | 5x150 | D61022207047 | GLOSS BLACK MILLED | 110.1 | -44 | 4.75 | 1001-79GBR | 2500 | 49 | CONICAL | 5.59 | ||
| 22x12 | 8x165.1 | D61022208247 | GLOSS BLACK MILLED | 125.1 | -44 | 4.75 | 1002#53GBR | 3700 | 49 | CONICAL | 5.59 | |||
| 22x12 | 6x135 | 6x139.7 | D61022209846 | GLOSS BLACK MILLED | 106.1 | -45 | 4.75 | 1001-79GBR HR87.1/78.1 | 2500 | 49 | CONICAL | 5.59 |
